Cast iron and steel serve different roles in industrial parts and equipment.
Choosing the wrong one can increase machining difficulty, welding problems, vibration, or part failure. Cast iron offers damping and compressive strength, while steel provides better tensile strength and fabrication flexibility. Treating them as interchangeable often leads to higher costs and avoidable redesigns.
This guide compares cast iron vs steel in properties, manufacturing, and applications, helping you choose the right material for strength, stability, cost, and production needs.
Quick Answer: Which is Better?
-
Choose Cast Iron when your design requires complex, near-net-shape geometries, superior vibration damping (like a CNC machine base), or high compressive strength at an economical .
-
Choose Steel when your part is safety-critical, subjected to heavy impact or tensile loads, requires routine welding, or needs the ductility to bend without shattering.
Cast Iron vs Steel at a Glance
| Feature | Cast Iron (General) | Steel (General) |
|---|---|---|
| Carbon Content | High (> 2.1%, usually 2–4%) | Low (< 2.1%) |
| Melting Point | Lower (~1150°C – 1200°C) | Higher (~1370°C – 1500°C) |
| Castability | Excellent (Intricate shapes) | Fair (Prone to shrinkage) |
| Vibration Damping | Outstanding (Anti-chatter) | Poor (Tends to resonate) |
| Weldability | Extremely difficult | Excellent (Industry standard) |
| Tensile Strength | Lower (Brittle) | High (Ductile & Tough) |
The 2.1% Carbon Line: What Defines the Difference?
The absolute metallurgical dividing line is carbon content. According to ASM International, steel is produced when carbon is kept below 2.1 wt%. Once it exceeds this threshold, the material becomes cast iron.

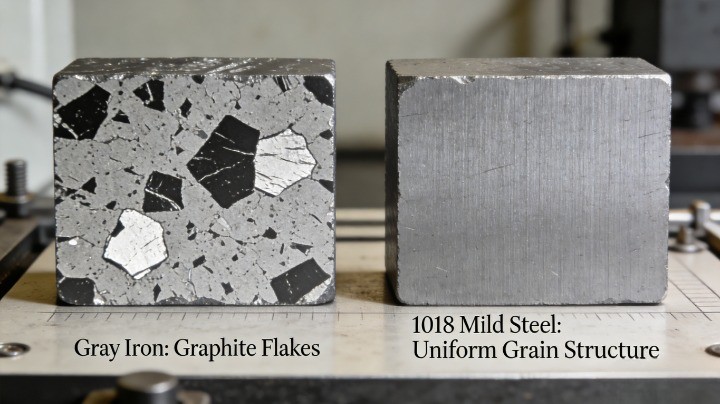

This extra carbon precipitates out as graphite (flakes in Gray Iron or spheres in Ductile Iron). This “Eutectic” chemistry allows molten cast iron to flow into highly complex molds like water, but it also makes the final part more brittle than its steel counterparts.
Deep Dive: 4 Key Engineering Differences
1. Strength, Toughness, and Brittleness
If your part will endure shock loading or bending, steel is the superior choice. Gray Iron is a classic brittle material; its internal graphite flakes act as stress concentrators. Under heavy impact, it snaps rather than bends. Steel possesses high ductility, allowing it to yield and deform under extreme stress before fracturing.
2. Vibration Damping and Machinability
This is where cast iron dominates the shop floor. Gray iron has a damping capacity up to 100 times greater than steel. This is why heavy-duty CNC lathe beds and engine blocks are exclusively poured from iron—it deadens “chatter,” ensuring superior machining precision. Furthermore, the graphite acts as a natural lubricant, making it easy to machine with minimal tool wear.
If your project still requires secondary finishing after casting, this is where becomes part of the real production route.
3. Weldability on the Shop Floor
If your manufacturing route involves fabrication, avoid cast iron. Welding cast iron is a high-risk process due to its high carbon content. The intense heat causes carbon migration, leading to quench cracking. Steel is the global benchmark for weldability; low-carbon steels can be TIG or MIG welded with zero structural compromise. For a broader fabrication reference, see .

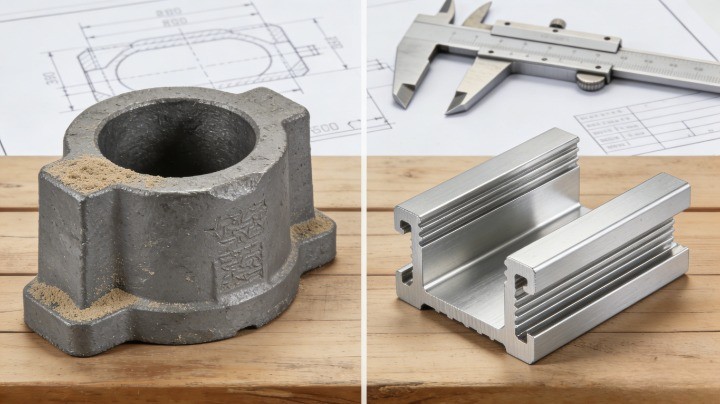

4. Manufacturing Economics: Casting vs. Fabricating
Cast iron is famously economical for massive, intricate geometries. Its lower melting temperature (400°C lower than steel) saves energy, and its fluidity produces near-net-shape castings that require minimal secondary machining. Steel saves money when a design needs thin walls or can be cheaply fabricated from standard plates and tubes.

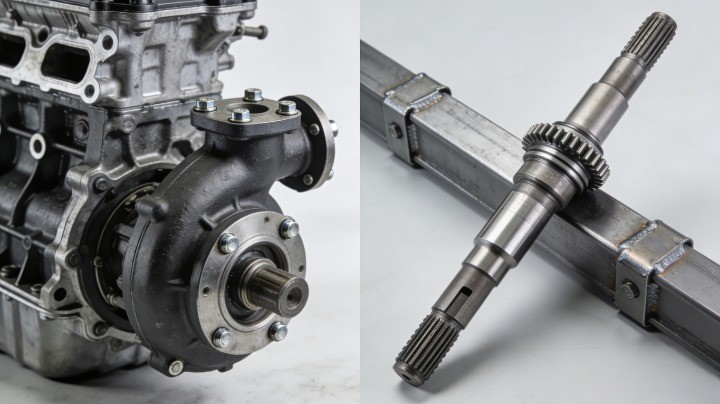

Where They Actually Belong
Instead of just listing generic parts, let’s look at the engineering scenarios that force a buyer to choose one over the other on the shop floor.
The Cast Iron Territory (Mass, Damping, and Internal Complexity)
-
Precision Machining Equipment: You will almost never see a steel lathe bed or milling gantry. Steel “rings” and amplifies vibration, whereas massive gray iron bases absorb cutting chatter, guaranteeing tight CNC machining tolerances.
-
Complex Fluid Handling: Heavy-duty pump volutes, compressor housings, and multi-port valve bodies. Molten iron flows so beautifully that casting these complex internal water jackets and flow channels is incredibly cost-effective compared to machining them from steel billets.
-
High-Friction Wear Parts: Engine blocks, brake rotors, and industrial counterweights rely on the graphite flakes in cast iron to act as a natural dry lubricant and thermal sponge.
The Steel Territory (Impact, Flex, and Fabrication)
-
Welded Industrial Skids & Frames: If your design involves laser-cutting plates, bending tubes, and TIG/MIG welding them into a load-bearing assembly, steel is your only practical choice. Trying to weld cast iron into a structural frame is a massive liability.
-
High-Torque Powertrain Components: , drive axles, and heavy-duty linkages. Under sudden twisting forces (torsional fatigue), cast iron will snap. Forged or machined steel will yield, flex, and survive the shock.
-
High-Pressure Containment: Pressure vessels, crane booms, and hydraulic cylinders require extreme ductility to prevent catastrophic, brittle explosions under sudden pressure spikes—a job exclusively meant for steel.
Make the Right Material Decision with HMaking
At HMaking, you get practical support for choosing between cast iron and steel based on your part design, load requirements, and manufacturing process. Our team helps you reduce risk, control cost, and improve manufacturability before production begins.
Start Your Project Today
Contact us today for expert material advice and a competitive quote. Send your drawings or CAD files, and we will recommend the most reliable solution for your project.
FAQ
Is cast iron stronger than steel?
In terms of tensile strength and impact toughness, no. Steel is significantly stronger and more ductile. However, cast iron often boasts superior compressive strength, making it excellent for bearing heavy static loads.
The high carbon content in cast iron forms internal graphite flakes or carbides. These structures interrupt the iron matrix, acting as stress concentrators that lead to brittle fracture rather than ductile bending.
Can you weld cast iron to steel?
Technically yes, but it is highly risky. It requires specialized high-nickel rods and strict thermal controls to prevent cracking. For mixed-material assemblies, mechanical fastening (bolting) is almost always the safer, preferred engineering route.
Is cast iron cheaper than steel?
