Our CNC Machining Quality Control Workflow: From Drawing to Delivery

When you source CNC machining, quality control workflow matters more than any single quote or spec sheet.

Many buyers pay the price for unclear processes: good-looking samples, but unstable series production; nice presentations, but no real traceability when something goes wrong. In sectors like automotive, robotics, and medical, a single out-of-tolerance part can stop a line, trigger field failures, or damage your brand. You do not just need precision parts; you need a supplier with a controlled, repeatable way to deliver them.

In this article, you will see how a structured CNC machining quality control workflow works from RFQ to shipment, what checks happen at each stage, and how this protects your projects, budgets, and timelines when you work with an external machining partner.

What CNC Buyers Need from a CNC Machining Quality Control Workflow？

CNC buyers need a quality control workflow that consistently delivers parts that match drawings, function in assembly, and arrive on time with clear documentation.

Beyond a simple “final inspection,” an effective workflow should help you avoid late surprises, reduce rework at your plant, and give you confidence that the supplier can support future ramp-up or design changes. It should be visible, documented, and aligned with your own internal quality requirements, not a black box on the supplier’s side.

To reach that level, you need more than a skilled machinist. You need process control plus traceable documentation. Process control keeps machining stable. Documentation shows what happened and proves that parts meet requirements.

Typical risks you want to control include:

• Parts within nominal dimensions but failing GD&T in assembly.

• Variation between batches because of tool wear or different operators.

• Missing material certificates or incomplete inspection reports during audits.

• Delays caused by late discovery of nonconforming parts at your incoming inspection.

A transparent CNC machining quality control workflow addresses these risks step by step, long before parts reach your line.

Overview of Our End-to-End CNC Quality-Controlled Manufacturing

Our CNC machining quality control workflow follows your part from drawing to delivery in six core stages.

We start with RFQ and design for manufacturability (DFM), move through material and tooling checks, prove out the process with first article inspection (FAI), stabilize it with in-process control, and finish with final inspection, documentation, and shipment release. At every stage, we capture data and decisions so you can trace how quality is built into each batch of parts.

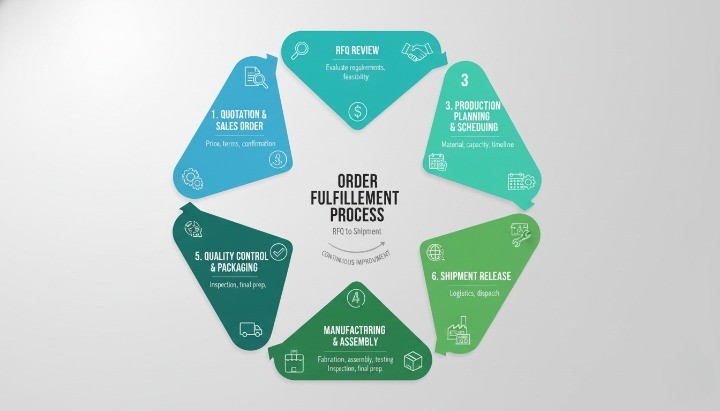

Six core stages in our CNC machining quality control workflow:

1. RFQ, DFM review, and control plan definition.

2. Incoming quality for material, tooling, and machines.

3. CNC programming, trial runs, and FAI.

4. In-process control on the shop floor.

5. Final inspection, assembly, and functional validation.

6. Documentation, traceability, and shipment release.

We integrate these steps within a quality management framework based on ISO 9001 principles, which focus on consistent processes, risk-based thinking, and continuous improvement.

If you already work under internal systems such as IATF-style controls or supplier quality manuals, we can map our workflow to your internal quality and compliance requirements so your audits and PPAP-style reviews move faster.

Stage 1 – RFQ, DFM Review, and Control Plan for CNC Machining

A robust CNC machining quality control workflow starts at the RFQ stage, not at the inspection table.

When we receive your 2D drawings, 3D models, and specifications, we review them with engineering, manufacturing, and quality together. The goal is to understand not only what the part looks like but also how it functions in your assembly and how sensitive it is to variation.

We look at:

• Dimensional tolerances and GD&T callouts.

• Surface finish and cosmetic requirements.

• Material grade and any heat treatment.

• Special features such as threads, thin walls, or tight position tolerances.

Based on this review, we provide DFM recommendations when needed. For example, we may suggest slightly larger radii, adjusted tolerance zones, or alternative chamfer details that maintain function but improve machinability and stability. These discussions help prevent quality issues later, such as chatter marks, warping, or impossible datums.

Once we agree on the approach, we build a control plan for CNC machining. This plan defines:

• Critical and significant characteristics to monitor.

• Measurement methods and inspection tools.

• Sampling frequency during production.

• Required documentation (FAI, dimensional reports, certificates).

By aligning acceptance criteria and quality levels with you at this early stage, we avoid vague expectations and reduce the risk of disputes after parts arrive.

For more complex projects or ongoing programs, this planning also connects with our broader manufacturing process and capabilities.

Stage 2 – Incoming Quality: Material, Tooling, and Machine Readiness

Before we cut any metal, we verify that material, tooling, and machines are ready to produce conforming parts.

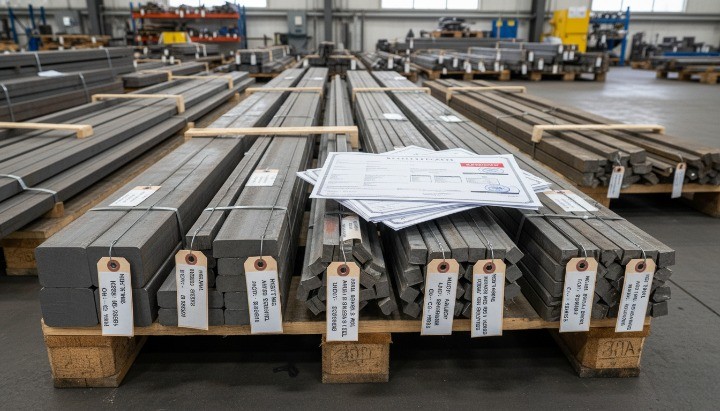

We start with raw material verification. We check material certificates (such as EN 10204 3.1) and cross-check grade, heat number, and mechanical properties against your drawing and standards. This step ensures that the base material for aluminum, steel, or other alloys truly matches your requirements, which is essential for fatigue strength, corrosion performance, and downstream treatments.

We also inspect tooling and fixtures. A stable, repeatable setup is a major factor in holding tight tolerances. We confirm clamping, support surfaces, and reference datums so that parts sit consistently for each operation, especially in multi-axis setups.

Next, we check our measuring instruments. Calipers, micrometers, height gauges, and coordinate measuring machines (CMMs) follow a calibration schedule aligned with recognized metrology practices. A stable measurement system is critical; without it, even a good process cannot prove conformity with confidence.(Source:NIST)

We also set up traceability at this stage. Material batches, tool setups, and job travelers receive internal IDs so we can link the finished parts back to material certificates, inspection records, and machine setups. If an issue ever occurs, this traceability allows us to isolate affected parts quickly instead of stopping entire product families.

Stage 3 – CNC Programming, Trial Runs, and First Article Inspection (FAI)

In Stage 3, we translate your design into a stable CNC machining process through programming, trials, and first article inspection.

Our programmers create toolpaths in CAM with a focus on maintaining tolerances, controlling surface finish, and keeping cycle times efficient. We choose tools, cutting parameters, and strategies that balance speed with stability. For features such as tight bores, precision slots, or complex profiles, we prioritize repeatability and dimensional control over aggressive feeds and speeds.

We then run a trial batch or first-off parts. Operators and engineers check the machine setup, verify zero points and offsets, and watch for signs of vibration, deflection, or thermal drift. This is where we adjust tool lengths, speeds, and feeds to achieve the desired results.

The key deliverable in this stage is the First Article Inspection (FAI) report. For the FAI, quality inspectors measure all or a defined set of dimensions, including critical characteristics and GD&T features, using calibrated tools and CMM where needed. We document results, deviations (if any), and process notes.

For customers in automotive or similarly demanding sectors, we can also support PPAP-style documentation packages, which may include:

• Process flow diagrams.

• Detailed control plans.

• Capability studies on key dimensions.

• FMEA-based risk assessments if requested.

Only when the FAI meets agreed criteria do we release the CNC machining process for ongoing production. This approach avoids discovering fundamental issues in the middle of a large batch.

If you want to learn more about how we handle complex metal parts, you can also see our guide to CNC machining for custom metal parts. (Source:HM)

Stage 4 – In-Process Control: Machine Shop Quality Control Procedures

Once production starts, in-process control keeps the CNC machining workflow stable and predictable.

We do not rely on final inspection alone. Instead, we embed checks into the machining process itself. Operators and quality staff follow clear machine shop quality control procedures that define what to measure, how often to measure it, and what to do when results drift toward specification limits.

A typical in-process control setup includes:

• Operator self-inspection on defined dimensions at set piece counts.

• Dedicated QC checkpoints for critical dimensions or complex GD&T.

• Verification of tool wear, offset adjustments, and surface finish.

• Spot checks on positioning, concentricity, and perpendicularity as needed.

For stable, higher-volume production, we may apply statistical process control (SPC). SPC uses statistical methods and control charts to monitor process behavior in real time, detect trends, and trigger corrective actions before parts go out of tolerance.(Source:ASQ)

The goal is simple: catch variation early, when it is still cheap to correct. Adjusting a tool offset or replacing an insert during the run is far less costly than scrapping a finished lot or rejecting parts at your incoming inspection.

We also monitor external factors that affect accuracy, such as machine temperature, coolant condition, and chip evacuation. These may sound like small details, but over a long production run they can shift dimensions enough to cause assembly problems.

Stage 5 – Final Inspection, Assembly, and Functional Validation

In Stage 5, we confirm that finished CNC machined parts and assemblies meet all drawing and functional requirements before shipment.

Depending on your project and risk level, we define an inspection strategy that combines sampling and, where required, 100% checks on specific features. High-risk features that directly affect safety, sealing, or alignment may receive special attention.

Final inspection typically includes:

• Dimensional verification with CMM, height gauges, and dedicated gauges.

• Geometric tolerance checks for position, flatness, runout, and perpendicularity.

• Surface finish checks against Ra requirements and cosmetic standards.

• Visual inspection for burrs, sharp edges, scratches, and contamination.

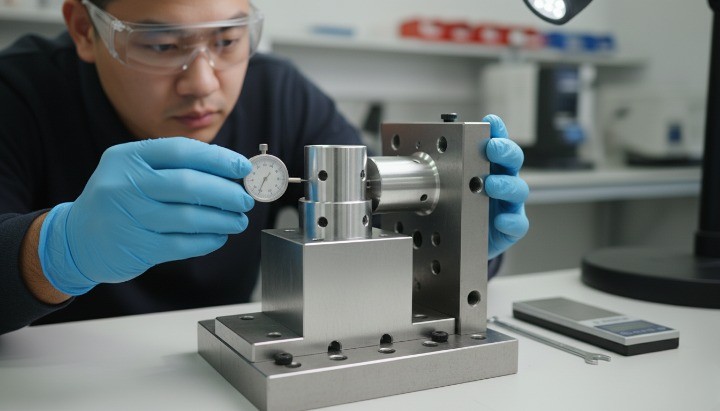

When assemblies or mating parts are involved, we perform assembly and fit verification. We test how parts seat, rotate, or seal under realistic conditions. This step often reveals issues that pure dimensional checks cannot catch, such as stack-up effects or interference under torque.

To make this clearer, the table below summarizes typical inspection strategies:

This stage gives you confidence that individual measurements and real-world function align, reducing the chance of surprises when parts reach your plant.

Stage 6 – Documentation Package, Traceability, and Shipment Release

Before we release any shipment, we assemble the documentation and verification that prove conformity.

A standard quality documentation package for CNC machined parts may include:

• Dimensional inspection report (including FAI when applicable).

• Certificate of conformity (COC) confirming compliance with drawing and PO.

• Material certificate (e.g., EN 10204 3.1) from the mill or supplier.

• Certificate of origin (CO) when required for customs or trade agreements.

For projects that need deeper validation, we can provide advanced quality control options such as:

• 3D optical scanning to compare parts to CAD models.

• CT scanning for internal features on complex components.

• Detailed surface roughness measurement reports on critical surfaces.

All documentation links back to traceability records: batch IDs, heat numbers, job travelers, and machine setups. We maintain records according to our quality management procedures and, where requested, your specific retention requirements.

Only after a final QC sign-off, which confirms that both physical parts and documentation match the agreed scope, do we release parts for packing and shipment. This closure step ensures that shipments do not leave with missing certificates or incomplete reports, which can delay your incoming checks.

Quality Standards, Inspection Equipment, and Digital QMS Behind Our Workflow

Behind each step of this workflow, we rely on structured quality management and the right inspection equipment.

Our quality management system follows the principles of ISO 9001, the globally recognized standard for quality management systems. ISO 9001 provides a framework for repeatable processes, risk management, and continual improvement so organizations can meet customer and regulatory requirements consistently.(Source:国际标准化组织)

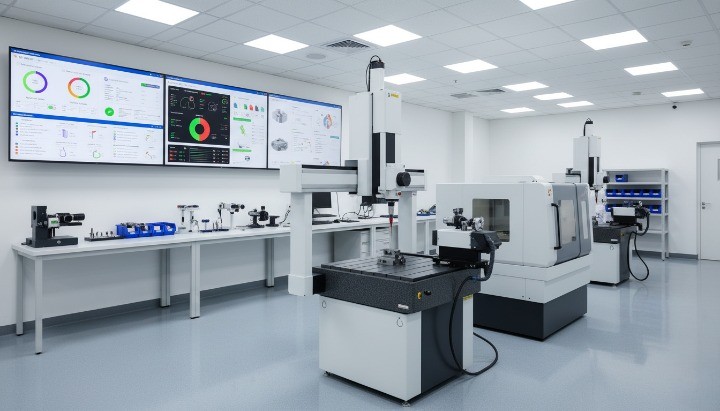

To support precision and repeatability, our inspection equipment includes tools such as:

• Coordinate measuring machines (CMMs) for complex geometries and GD&T.

• Vision systems for small features and non-contact measurements.

• Hardness testers for material verification after machining or heat treatment.

• Height gauges, micrometers, and bore gauges for routine checks.

We also use digital quality control software to manage inspection plans, records, and nonconformances. Digital records improve traceability, reduce manual errors, and speed up report generation. They also support trend analysis, which helps us identify improvement opportunities across projects and customers.

Preventive maintenance and tool calibration round out this foundation. Regular machine maintenance keeps repeatability high, while scheduled calibration ensures that inspection tools provide reliable data. Without this foundation, even the best workflow on paper cannot deliver stable quality over time.

If you want to see how this connects to real products, you can review our CNC machining parts capabilities and CNC components manufacturing services.

Tailored Control Plans for Different Industries and Risk Levels

Different industries and projects do not need the same depth of CNC machining quality control, so we tailor control plans to match risk and cost.

For prototypes and early development, you may prioritize speed and feedback over extensive documentation. For mass production in automotive or medical applications, you may require detailed reports, capability studies, and structured change control. The right balance keeps you safe without overpaying for unneeded checks.

We typically adapt control depth along three axes:

• Project phase: prototype, pilot run, or stable series production.

• Industry and regulatory environment.

• Part function and risk if failure occurs.

For example:

• Prototypes: lighter sampling, focus on learning and DFM feedback.

• Small batches for industrial machinery: targeted checks on critical dimensions and fits.

• High-volume automotive or safety-related parts: comprehensive control plans, SPC, and PPAP-style documentation.

Our experience with CNC machined parts for automotive, robotics, medical, and energy applications helps us understand how different sectors view risk and compliance. In each case, our CNC machining quality control workflow stays the same in structure, but we adjust the intensity and documentation level to match your internal audit and supplier management systems.

We also customize reporting formats and data fields so your quality teams can integrate our information into their own databases or PLM/ERP systems without manual rework. This reduces friction and makes it easier to add us as a long-term approved supplier.

How Our CNC Quality Control Workflow Supports Engineering and Procurement？

A structured CNC machining quality control workflow supports both engineering and procurement teams in different but connected ways.

For engineering, the workflow reduces design risk. Early DFM reviews, clear control plans, and FAI reports help you confirm that the design can be manufactured reliably. Changes happen sooner, while they are still cheap, instead of during ramp-up or after field feedback.

For procurement, the workflow stabilizes total cost and delivery performance. Stable processes and traceable inspection reduce unexpected scrap, returns, and line stops. Consistent documentation simplifies supplier audits and qualification. Over time, this can lower the total cost of poor quality and strengthen your negotiation position because you understand exactly what level of control you are buying.

From our side, transparent communication is crucial. We share sample reports, discuss control plans, and agree on checkpoints before full production. If an issue arises, we show how we will contain it, correct it, and prevent recurrence. This approach treats quality control as a shared risk management tool, not just paperwork.

When you evaluate any CNC supplier’s quality control workflow, you can start with questions like:

• How do you build the control plan for CNC machining parts?

• Which dimensions do you monitor in-process, and how often?

• What inspection equipment and software do you use?

• What documentation do you provide by default, and what can be added?

Suppliers who can answer these questions clearly and show evidence of their methods usually offer lower long-term risk, even if their unit price is not the lowest on the spreadsheet.

FAQs About CNC Machining Quality Control and Inspection

How do you inspect a finished CNC machined part?

We inspect finished CNC machined parts using a mix of dimensional checks, GD&T verification, surface finish measurement, and visual inspection. For complex features, we use CMM or vision systems. For assemblies, we perform fit and functional tests so the part does not just look correct on paper but actually works in your product.

What is included in a CNC machining control plan?

A CNC machining control plan usually lists critical features, measurement methods, sampling frequency, inspection equipment, and reaction plans when results move out of control. It also notes which records we keep and which reports you receive, such as FAI results, SPC charts, or capability studies.

What quality documents can you provide with CNC machined parts?

Standard documents include dimensional inspection reports, certificates of conformity, material certificates, and certificates of origin. For higher-risk projects, we can add PPAP-style documentation, 3D scan comparison reports, or surface roughness data when required.

How do you handle nonconforming parts and corrective actions?

When we find nonconforming parts, we contain the issue, segregate affected batches, and inform you when relevant. We then analyze root causes, implement corrective actions, and verify effectiveness. This process follows established corrective and preventive action (CAPA) practices within our quality management system.

Start Your Next CNC Machining Project With a Proven Quality Control Workflow

If you want more than a price quote, you need a CNC machining partner with a proven, transparent quality control workflow from drawing to delivery.

When you share your drawings, 3D models, and quality requirements with us, we review them with manufacturing and quality together. We propose a control plan, agree on documentation, and support you through prototypes, pilot runs, and stable production. You can also explore our CNC machining parts and CNC hardware parts pages to see the range of components we handle.

If you would like to see how this looks in practice, you can request a sample inspection report or example control plan based on a real part. Once you are ready, send your RFQ and quality requirements, and we will respond with a CNC machining quality control workflow and quotation built around your risk, documentation, and cost targets, not just a unit price.
