CNC Grinding 101: What Do You Need to Know

CNC grinding is revolutionizing the manufacturing world. It offers unmatched precision and efficiency, making it a game-changer for industries that demand high-quality parts.

This advanced machining process uses computer numerical control to operate various types of grinders, ensuring meticulous shaping of both metal and non-metal workpieces. The benefits are clear: exceptional accuracy, superior surface quality, and versatility across materials.

As we dive deeper into CNC grinding, you will discover how this technology enhances productivity while addressing challenges in material handling. Join us as we explore its applications and advantages in modern manufacturing.

What is CNC Grinding?

CNC grinding transforms raw materials into precision components. This advanced machining process enhances efficiency and quality in manufacturing, making it essential for modern industries.

CNC grinding is a precise machining method that uses computer numerical control to operate grinding machines¹. It shapes both metal and non-metal workpieces with high accuracy. This technique includes various grinders like cylindrical, centerless, and creep feed grinders, each designed for specific tasks. The benefits of CNC grinding include exceptional precision, superior surface quality, and versatility across materials.

Understanding CNC Grinding

CNC grinding stands for Computer Numerical Control grinding. It is a process that uses programmed commands to control the movement of the grinding machine. This allows for high precision in shaping parts. The machines can grind different materials like metals, ceramics, and plastics. They are widely used in industries such as automotive and aerospace due to their ability to produce complex shapes with tight tolerances.

Types of CNC Grinders

There are several types of CNC grinders available today:

1. Surface Grinders: These are used to create flat surfaces on workpieces.
2. Cylindrical Grinders²: They shape cylindrical parts by removing material from the outside.
3. Centerless Grinders: These do not require a spindle or fixture to hold the workpiece.
4. Internal Grinders: They focus on creating internal surfaces within a part.
5. Special Grinders: These are tailored for unique applications.

Each type has its own advantages depending on the specific requirements of the job.

Advantages of CNC Grinding

The advantages of CNC grinding are significant:

• High Precision: It can achieve tolerances down to microns.
• Reduced Waste: Efficient material removal minimizes scrap.
• Automation: Machines can run continuously with minimal supervision.
• Versatility³: Capable of working with various materials including metals and plastics.

These benefits make CNC grinding an attractive option for manufacturers looking to improve productivity while maintaining high-quality standards.

Challenges in CNC Grinding

Despite its many advantages, there are challenges associated with CNC grinding:

• Some materials may be too soft or brittle for effective grinding.
• The need for coolants during operation can complicate processes.
• Initial setup costs can be high due to equipment investment.

Understanding these challenges helps manufacturers prepare better when implementing CNC grinding solutions.

Conclusion

In summary, CNC grinding plays a crucial role in modern manufacturing by offering precision and efficiency across various industries. Its ability to handle diverse materials makes it indispensable for producing high-quality components at scale. As technology advances, we can expect further improvements in this vital machining process that continues to shape our industrial landscape effectively.

What are the Different Types of CNC Grinding?

CNC grinding can transform your manufacturing process. It offers precision and efficiency that traditional methods can’t match. Discover how different types of CNC grinding can elevate your production quality.

CNC grinding includes various processes like surface, cylindrical, and centerless grinding⁴. Each type serves specific applications in industries such as automotive and aerospace, ensuring high precision and quality.

Surface Grinding

Surface grinding is a common CNC grinding method used to produce flat surfaces on workpieces. The process involves a rotating wheel that removes material from the surface of the part. This technique is ideal for achieving smooth finishes and precise dimensions. Surface grinders can handle various materials, including metals and plastics.

The key advantage of surface grinding is its ability to create a fine finish with tight tolerances. This makes it suitable for parts that require high accuracy, such as machine bases or plates. Additionally, surface grinders can be automated for increased efficiency in mass production.

Cylindrical Grinding

Cylindrical grinding focuses on creating cylindrical shapes on workpieces. This method uses a rotating grinder to remove material from the outer diameter of the part while it rotates on its axis. It’s commonly used for producing shafts, pins, and other round components.

One significant benefit of cylindrical grinding is its versatility in handling different sizes and shapes. It allows manufacturers to achieve precise diameters and finishes while maintaining consistency across multiple pieces. This makes it an essential process in industries where uniformity is crucial.

Centerless Grinding

Centerless grinding differs from other methods by not requiring the workpiece to be mounted between centers. Instead, it uses two wheels: one for support and another for cutting. This setup allows continuous feeding of parts without needing additional fixtures.

The main advantage of centerless grinding is its ability to grind multiple parts simultaneously with minimal setup time. It’s particularly effective for long or thin components where traditional methods may struggle. Industries like automotive often rely on this method for producing high volumes efficiently.

Internal Grinding

Internal grinding focuses on finishing the inner surfaces of hollow workpieces like tubes or cylinders. A small wheel grinds the inside diameter while the part remains stationary or rotates slowly.

This process is critical when achieving precise internal dimensions or finishes that external methods cannot provide easily. Internal grinders are often used in applications involving bearings or hydraulic cylinders where accuracy matters significantly.

Special Grinding Techniques

Beyond standard types, there are special CNC grinding techniques tailored for unique applications—such as creep feed grinding or gear grinding—which cater to specific industry needs.

These specialized processes enhance productivity by allowing deeper cuts at slower speeds without overheating materials excessively. They enable manufacturers to tackle complex geometries while maintaining high-quality standards across diverse materials.

Overall, understanding these different types of CNC grinding helps businesses choose the right method based on their specific requirements, enhancing both productivity and product quality in manufacturing processes.

How Does the CNC Grinding Process Work?

CNC grinding revolutionizes manufacturing with unmatched precision. Discover how this advanced process shapes materials to meet modern industry demands.

CNC grinding is a precise machining process that uses computer control to operate grinding machines, allowing for meticulous shaping of various workpieces. This method includes different types of grinders tailored for specific applications, ensuring high-quality results in industries like automotive and aerospace.

Understanding CNC Grinding Machines

CNC grinding machines⁵ are essential tools in modern manufacturing. They utilize rotating grinding wheels to remove material from workpieces with high accuracy. The main types include surface grinding, cylindrical grinding, centerless grinding, internal grinding, and special grinding. Each type serves unique purposes based on the shape and size of the components being machined.

Surface grinders focus on flat surfaces, while cylindrical grinders are ideal for round parts. Centerless grinders excel at producing long, thin components without needing a central axis for support. Internal grinders handle holes within parts effectively. Special grinders cater to unique requirements not covered by standard types.

Programming the CNC Grinding Process

Programming a CNC grinder involves inputting specific commands into the machine’s computer system. Operators use CAD/CAM software⁶ to design the part and generate code that dictates the movement of the grinding head. This code controls parameters such as speed, feed rate, and depth of cut.

The programming phase is crucial because it determines how accurately and efficiently the machine will operate. Properly programmed machines can produce identical parts consistently with minimal human intervention.

Advantages of CNC Grinding

CNC grinding offers numerous benefits over traditional methods. First, it provides exceptional precision down to microns, making it suitable for high-tolerance applications like ball bearings or camshafts. Second, automation reduces human error and labor costs while increasing production efficiency.

Additionally, CNC grinders can operate continuously without interruption, which enhances productivity significantly compared to manual processes. They also minimize waste by optimizing material removal rates and ensuring consistent quality across batches.

Challenges in CNC Grinding

Despite its advantages, CNC grinding does face challenges with certain materials. Softer or brittle materials may not respond well to traditional grinding techniques due to their tendency to deform or chip during processing.

Operators must choose appropriate tools and settings when working with these materials to avoid issues like overheating or poor surface finish. Using coolants can help manage heat buildup during operation but adds complexity to the process.

Conclusion: The Future of CNC Grinding

As technology advances, CNC grinding continues evolving with new innovations in machine design and software capabilities. These improvements promise even greater efficiency and precision in manufacturing processes across various industries.

With its ability to adapt to diverse materials and applications, CNC grinding remains a vital component in meeting modern production demands effectively.

What Are the Key Benefits of CNC Grinding?

CNC grinding transforms manufacturing with unmatched precision and efficiency. Discover how this technology can elevate your production processes today!

CNC grinding offers numerous advantages over traditional machining methods, including exceptional precision, superior surface quality, and increased efficiency. This technology allows for meticulous shaping of various materials, making it ideal for diverse applications in industries like automotive and aerospace⁷.

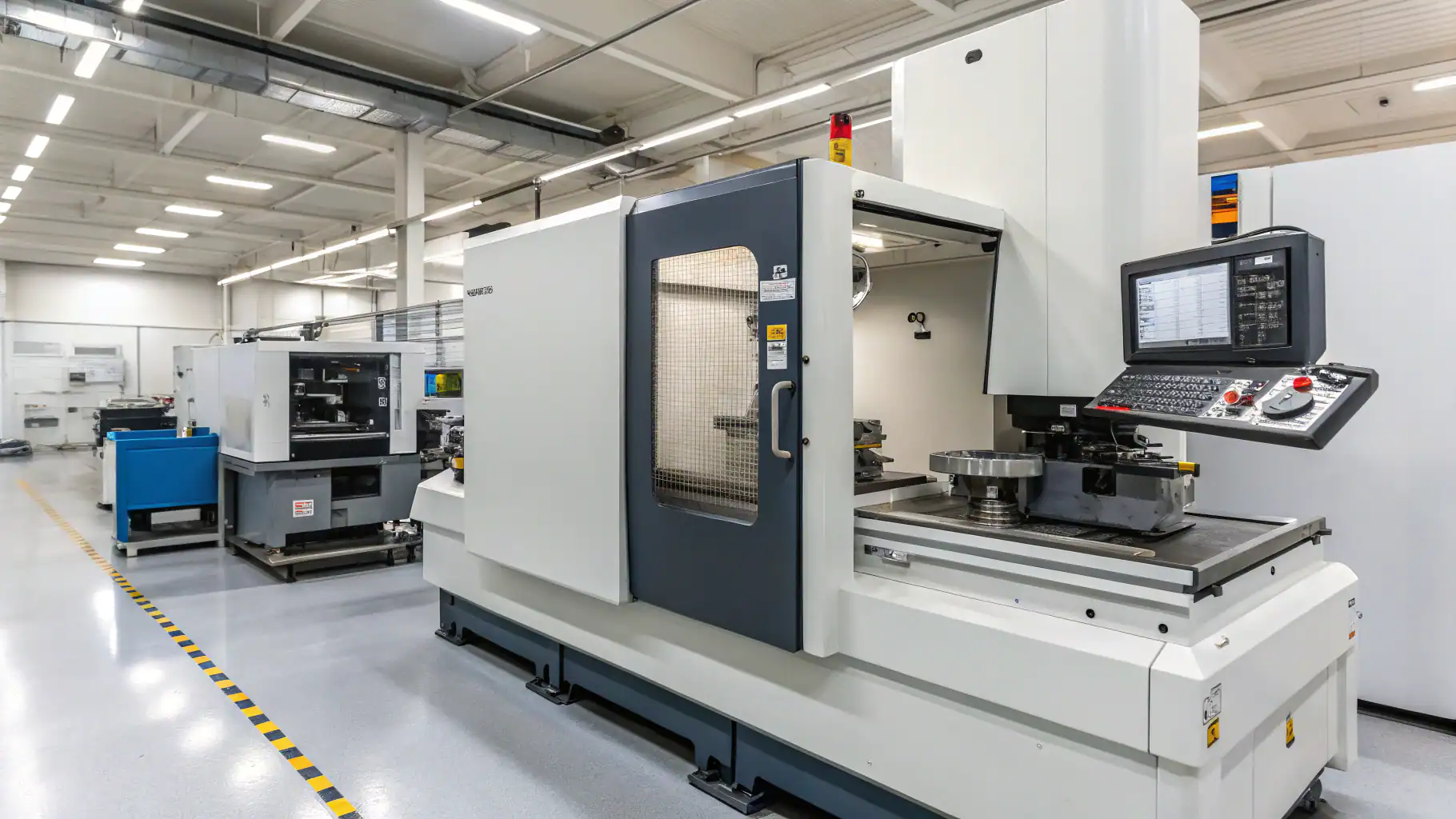

CNC grinding machine

Exceptional Precision

One of the standout benefits of CNC grinding is its ability to achieve remarkable precision. CNC machines can operate with tolerances down to microns. This level of accuracy is crucial for industries that require high-quality components, such as aerospace and medical devices. Traditional methods often struggle to reach these standards consistently. With CNC grinding, manufacturers can produce identical parts repeatedly without sacrificing quality.

Superior Surface Quality

CNC grinding not only focuses on dimensional accuracy but also enhances surface finishes. The process removes material using rotating wheels that create smooth surfaces on workpieces. This is particularly important for components like ball bearings or camshafts where surface finish directly affects performance and longevity. In contrast, traditional machining may leave rougher surfaces that require additional finishing processes.

Versatility Across Materials

Another key advantage of CNC grinding is its versatility in handling different materials. Whether it’s metals, ceramics, or plastics, CNC grinders can adapt to various applications effectively. This flexibility allows manufacturers to use a single machine for multiple projects rather than investing in specialized equipment for each material type.

Automation Reducing Human Error

CNC grinding machines are automated systems that minimize human intervention during operation. By programming specific commands into the machine, manufacturers reduce the risk of errors caused by manual labor. This automation not only increases efficiency but also ensures consistent quality across large production runs.

Increased Efficiency in Production

Finally, CNC grinding significantly boosts overall productivity in manufacturing environments. These machines can operate continuously without breaks, allowing for higher output rates compared to traditional methods that may require more downtime for setup or adjustments. Additionally, they require minimal supervision once programmed correctly.

In summary, CNC grinding represents a significant advancement in manufacturing technology that enhances productivity and quality across various industries through its precision, versatility, and efficiency.

Which Materials Can Be Used for CNC Grinding?

CNC grinding can transform your manufacturing process, but not all materials are suitable. Discover the best options to enhance precision and efficiency in your projects.

CNC grinding is ideal for various materials, including metals, ceramics, and plastics. Each material has unique properties that influence its grinding performance and application across industries.

Metals: The Backbone of CNC Grinding

Metals are the most common materials used in CNC grinding. They include steel, aluminum, brass, and titanium. Steel is favored for its strength and durability. Aluminum is lightweight and easy to machine. Brass offers excellent corrosion resistance while titanium is known for its high strength-to-weight ratio. These metals are widely used in automotive parts⁸, aerospace components, and medical devices due to their reliability.

Ceramics: Precision with Challenges

Ceramics are also suitable for CNC grinding but come with challenges. They offer exceptional hardness and wear resistance but can be brittle. This brittleness makes them prone to cracking during machining processes. Common ceramic materials include alumina and zirconia, which find applications in cutting tools and electronic components where precision is crucial.

Plastics: Versatile Yet Delicate

Plastics such as nylon, polycarbonate, and acrylic can be ground using CNC machines as well. They are lightweight and versatile but require careful handling due to their softer nature compared to metals or ceramics. Applications often include housings for automotive parts or electronics⁹ where weight reduction is essential.

Composite Materials: The Best of Both Worlds

Composite materials combine different substances to achieve superior properties not found in individual components. For example, carbon fiber reinforced polymers (CFRP) are strong yet lightweight. These composites can be challenging to grind due to their layered structure but offer significant advantages in aerospace applications where both strength and weight savings are critical.

Conclusion: Choosing the Right Material

Selecting the right material for CNC grinding depends on your specific needs and application requirements. Understanding the properties of each material will help you make informed decisions that enhance productivity while ensuring quality outcomes in your manufacturing processes.

What Challenges Does CNC Grinding Face with Certain Materials?

CNC grinding is a powerful tool, but it struggles with soft or brittle materials. This can lead to poor results and wasted resources.

Understanding CNC Grinding Limitations

CNC grinding excels in precision but faces challenges with certain materials. Soft materials may deform during grinding, while brittle ones can fracture easily. These issues affect the quality of the finished product and increase production costs.

The Impact of Material Properties on CNC Grinding

Material properties¹⁰ play a crucial role in CNC grinding outcomes. Soft materials like aluminum can smear instead of being cut cleanly, leading to rough surfaces. Brittle materials such as ceramics may chip or crack under pressure, resulting in defects that compromise functionality.

Strategies for Overcoming Challenges

To tackle these challenges, manufacturers can adjust their approach. For soft materials, using finer grit wheels and slower speeds helps maintain surface integrity. For brittle materials, selecting appropriate wheel types and optimizing coolant use minimizes heat buildup and reduces cracking risks.

Importance of Tool Selection

Choosing the right tools is vital for successful CNC grinding. Different wheel compositions are designed for specific material types. For instance, diamond wheels work well with hard ceramics but may not be suitable for softer metals due to excessive wear.

Future Innovations in CNC Grinding Technology

As technology advances, new solutions are emerging to address these challenges. Innovations like adaptive control systems allow machines to adjust parameters in real-time based on feedback from the grinding process. This adaptability could significantly enhance performance when working with difficult materials.

By understanding these challenges and implementing effective strategies, manufacturers can improve their CNC grinding processes and achieve better results across various applications.

Conclusion

CNC grinding is a precise machining process that enhances manufacturing efficiency and quality across various materials and industries.
